SatKing Promax Fully Automatic Satellite Kit – Authorised Seller
Buy with confidence from a fully authorised and factory backed reseller. We have lots of experience supplying and fitting these units. Based in Adelaide we can fit in our experienced workshop. You can pickup from our caravan parts and accessories shop North of Adelaide in Elizabeth South. We can deliver the Pro max Australia wide!
The SatKing Promax automatic satellite is the most advanced satellite available for RV’s in Australia. It is perfect for caravans, motorhomes, 5th wheelers and bus conversions. Easy setup at the touch of a button the Pro max will be locked on in no time at all. Updated recently to address previous black spot issues the current version now offers 100% Australia wide coverage. Press the setup button and the SatKing Promax does the rest quickly and quietly.
Flat panel design offers many advantages over other dish style satellite systems including:
- Requires less space on roof including less clearance to operate.
- Less susceptible to wind.
SatKing Promax Features Include
- 3 year warranty
- Automatic fine tuning
- Suits VAST, foxtel satellite, twin tuner STB’s
- Australia Wide coverage
- Built in GPS
- No external arms to become misaligned or damaged
- Simple touch button operation
- Higher signal gain
- Automatic shut down if left up while travelling
- Dual output LNB
- Automatic skew adjustment
- Main drive gears all metal construction
- Low power consumption
Australia wide coverage of VAST and Foxtel Satellite TV
The SatKing ProMax has recently been upgraded to now cover the whole of Australia (excluding the tip of Cape York) for VAST and Foxtel Satellite TV. SatKing has provided a map to show the coverage area’s.
Made for harsh Australian conditions
The ProMax is rugged in construction with all metal gears for long life. Unlike the large oval dishes that need to be retracted when windy the ProMax is not affected by strong winds. This means the picture does not pixelate in the breeze and it does not need to be shut down.
Automatic Fine Tuning
The SatKing ProMax will automatically fine tune after the satellite is found to provide even higher signal level. No need to manually fine tune like other systems.
Flat Panel Design

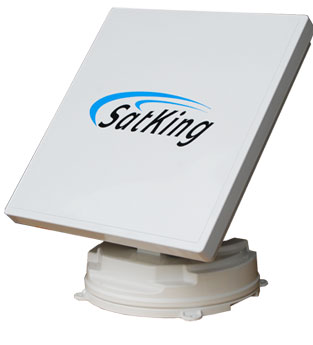

The SatKing ProMax Fully automatic motorised satellite TV dish system is the most advanced system on the Australian market, utilising the latest in flat panel antenna design.
The flat panel design receives the signal through small copper slots that act like many antennas in one. The signal is fed through small chambers that actually increase the signal gain through this process. The antenna arrays are then mixed together via a combiner and fed into the high performance LNB greatly increasing gain.
Flat panel satellite antennas also take up a great deal less space on the roof of your van leaving you with more choices for the exact location that you place the ProMax on your roof. You will be able to place the ProMax in between solar panels and air conditioners and even position the unit directly above a cupboard to easily drop cables in.
Simple To Use
The SatKing ProMax is very simple to use, simply turn the unit on, select the satellite you wish the view and press “OK”. The unit will then locate your position and set the elevation and skew angle automatically via the GPS and then locate the direction. Your VAST set top box will then load your channels and land on your last watched channel or channel 800. For Foxtel the STB will load the program guide listing and resume on the last watched channel, easy.
Built in GPS
The built in 24 channel GPS allows the ProMax to know your exact location, the unit is not just simply searching the sky trying to find a signal. Knowing your exact location allows the unit to pre-set the skew and elevation angles making locating the signal much easier. Then once the satellite is found the unit with then automatically fine tune both the skew and elevation to achieve the highest signal level.
The built in GPS also detects if you have left the unit up when driving and automatically retracts (requires power).
Pre-Programmed to receive VAST and Foxtel/Austar
This motorised satellite system suits Foxtel and VAST satellite TV. The unit has dual LNB outputs to suit twin tuner STB’s like Foxtel IQ/Austar MyStar and VAST twin tuner receivers.
The Promax can receive both DVBS and DVBS2 transponders (SD & HD MPEG4), this means the Promax can actually tune to all transponders available on both Optus C1 and D3. The added bonus of having the DVBS2 tuner already built in is that when Foxtel goes completely MPEG4 the Promax will continue to work (VAST is already MPEG4). Many other automatic systems on the market only can tune to the older MPEG2 signals, that is fine today but in the future you will have and expensive system just spinning around and around.
SATKING PROMAX USER MANUAL PDF
- Dimensions: 520 x 600 x 275 mm
- Weight: 18.5kg
- Operating temperature range:-30°C to 60°C
- Polarization: Horizontal/vertical
- LNB L.O: Dual Output 10700
- LNB input frequency: 11.75 – 12.75 GHz output frequency: 950 – 2150 MHz
- Elevation: 5° – 90°
- Azimuth: 390°
- Skew: -60° ~+60°
- Azimuth: 390°
- Input Voltage: DC 12 or 24V auto selection
- Voltage Range: 10.5v – 30.0v
- Consumption: 40 Watts in search mode
- Consumption: 4 Watts in standby mode
